Ersatzteil

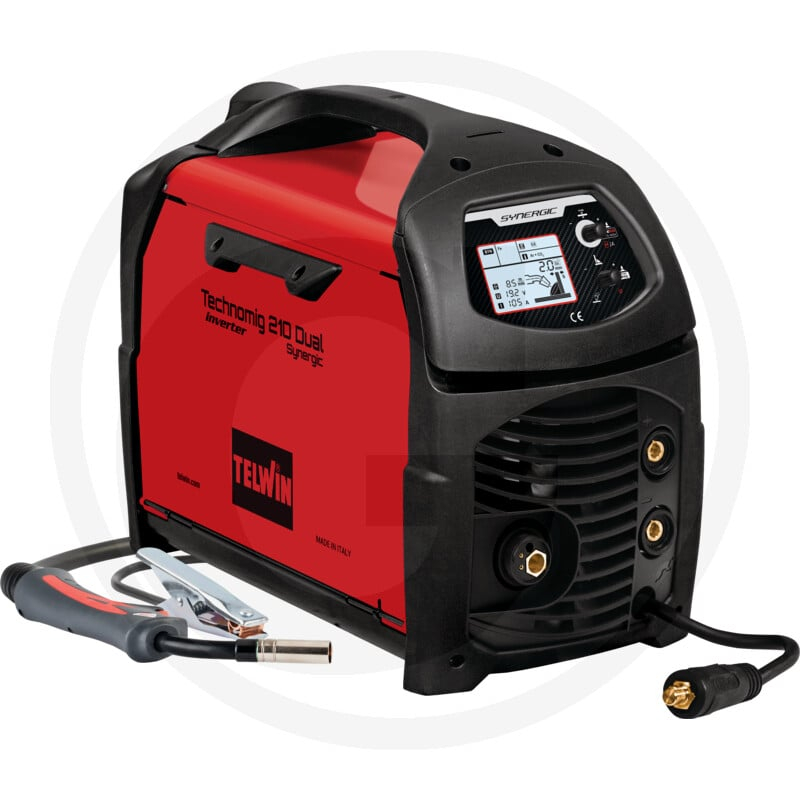

Drahtschweiżgerät Technomig 21 (500816052) Granit
€ 1.281,01inkl. MwSt.
€ 1.216,96 mit Wochenexpress
inkl. MwSt. zzgl. Versandkosten
Art.Nr. 500816052
Produktbeschreibung
Technische Spezifikationen
| Voltage (volts/Hz) | 230 |
| Mains voltage (V) | 230 - 1ph |
| Control range (A) | 20- 200 |
| Current (A) | 180 (20%) - 100 (60%) |
| Open circuit voltage (V) | 52 (DC) |
| Current requirement (A) | 5 - 30 A (60%) |
| Power consumption max. (kW) | 2,2 - 5 |
| Power factor (cos phi) | 0,6 |
| Wire thickness (mm) | Steel: 0.6 - 1.0 / Stainless steel: 0.8 / Aluminium: 0.8 - 1.0 |
| Protection class | IP23 |
| Dimensions (mm) | 460 x 240 x 360 |
| Weight (kg) | 13 |
| Dimensions L x W x H (mm) | 520 x 250 x 395 |
| Technical data | Portable microprocessor-controlled wire welder MIG/MAG/FLUX/BRAZING, with inverter technology. The flexible application options and the wide range of welding materials (steel, stainless steel, aluminium) and brazing materials (galvanised sheets) that can be processed make Technomig Dual Synergic an ideal solution for numerous applications, ranging from maintenance and installation to bodywork repairs. The rapid SYNERGISTIC welding parameter adjustment makes this product extremely easy to use. |
| Weight | 11,50 kg |
| EAN codes | 8004897916583 |
