Ersatzteil

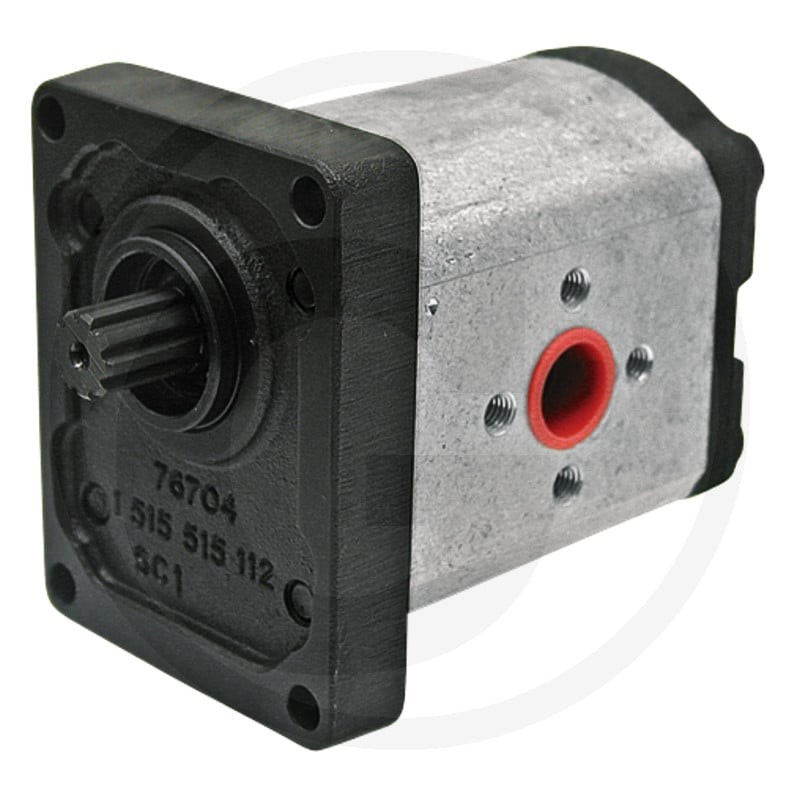

Einfachpumpe (2560510625049) Granit

Name: Einfachpumpe (2560510625049) Granit
SKU: 2560510625049
Availability: InStock

€ 488,92inkl. MwSt.

€ 464,47 mit Wochenexpress

inkl. MwSt. zzgl. Versandkosten

Art.Nr. 2560510625049

Output volume (cc/rev)	19
Drive shaft	Splined shaft B 17 x 14 Z9
Types	Dorado³ Classic-60, 70, 80, 90, Explorer 75, Explorer C 70- C Ergomatic, 80 C Ergomatic, 90 C Turbo, Frutteto³ Classic-60 Classic Compact, 70 Classic Compact, 80 Classic Compact, 80.4 Classic, 90 Classic, 100 Classic, Iron 175 S, 190 S, 200 S, Iron Tier 3-210, Krypton 80, 90, 100, Krypton F 78 C, F 78 M, F 78 N, F 88 C, F 88 M, F 88 N, F 98 C, F 98 M, F 98 N, Krypton V-V 70 C-N, V 80 N-M-L, 80 V N-M-LC, Rubin 120, 135, 150, 160, 160 Galileo, 180, 180 Galileo, 200, 200 Galileo, Tiger- 50 E, 60 E, 60, 70, 70 E, 75.4, 75.4 E, 80.4, 80.4 E, 65, 75
Operating pressure max. (bar)	210
Direction of rotation	Right
Min. speed (1/min.)	500
Max. speed (1/min.)	3000
Line connection suction side	Ø 40 mm, 4 holes, M6
Line connection pressure side	Ø 30mm, 4 holes, M6
Bosch no.	0510625049
Capacity Q (cc/rev)	19
Adaptor plate hole pattern (mm)	71,5 x 96,2
Fitting Ø (mm)	36,5
Seal material	FKM
Weight	3,86 kg
Fig. no.	19
