Ersatzteil

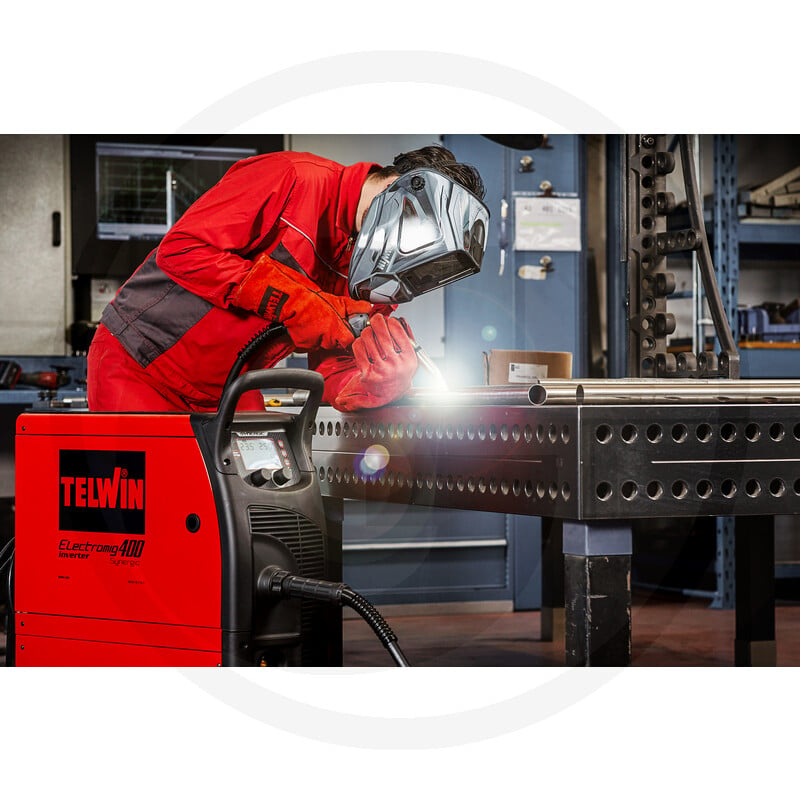

Electromig 400 Synergic (500816090) Granit
€ 4.357,14inkl. MwSt.
€ 4.139,28 mit Wochenexpress
inkl. MwSt. zzgl. Versandkosten
Art.Nr. 500816090
Produktbeschreibung
Technische Spezifikationen
| Current requirement (A) | 15 - 17 |
| Technical data | Welding wire max. 15 kg coil: |
| Voltage (volts/Hz) | 230/400 |
| Control range (A) | 20 - 320 / 20 - 400 |
| Electrodes (mm) | 1,6 - 6 |
| Current (A) | 320 (20%) - 400 (30%) |
| Dimensions L x W x H (mm) | 280 x 890 x 800 |
| Weight (kg) | 42.0 |
| Protection class | IP23 |
| Power consumption max. (kW) | 12,6 - 16,5 |
| Open circuit voltage (V) | 106 / 73 |
| Additional information | Multi-process welder with inverter technology with MIG/MAG / FLUX / BRAZING / MMA and TIG DC lift with microprocessor control and wire feed with 4 rollers. Flexible use with different welding materials (steel, stainless steel, aluminium) or braze welding materials (galvanised sheets). Wide range of applications in industry, from maintenance and assembly to bodywork repairs. The synergistic adjustment allows the product to be operated easily. With Telwin ATC technology, excellent welding results can be easily achieved on thin-walled materials thanks to the sophisticated arc control. |
| Weight | 42,00 kg |
| EAN codes | 8004897994628 |
