Ersatzteil

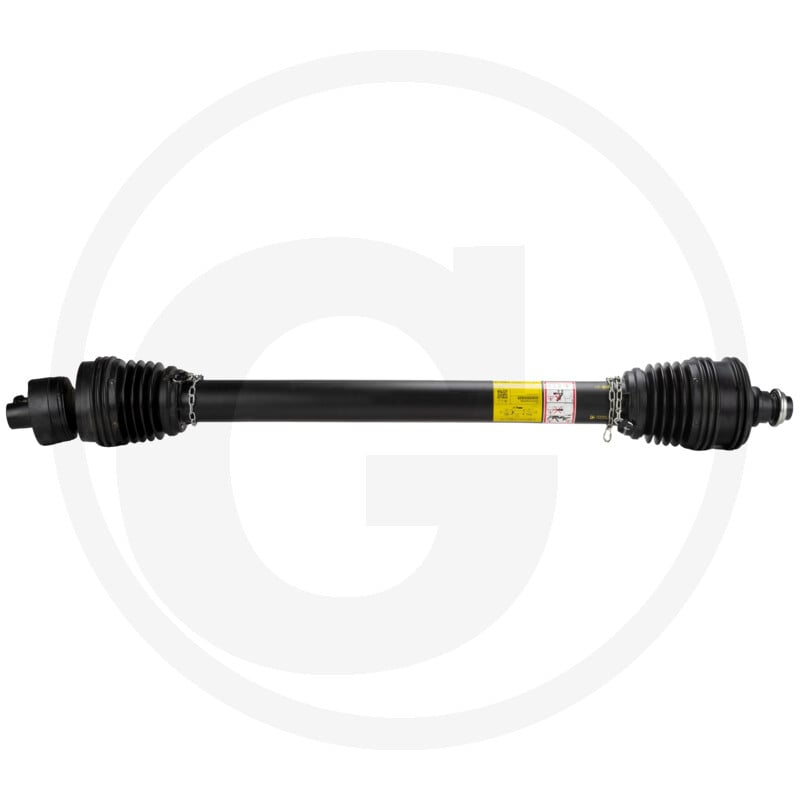

Gelenkwelle (415Dh7R121Cewq7K02) Granit
€ 3.466,32inkl. MwSt.
€ 3.293,00 mit Wochenexpress
inkl. MwSt. zzgl. Versandkosten
Art.Nr. 415DH7R121CEWQ7K02
Produktbeschreibung
Technische Spezifikationen
| Size | H7 |
| Tractor version | 1 3/8" 6 splines |
| Implement version | 1 3/4" 6 splines |
| Lz (mm) | 1210 |
| Profile | Italian system |
| Connection | Cam-type cut-out clutch |
| Lock | Implement: tapered clamping screw/tractor: automatic lock |
| Type | SFT series 80°/50° wide angle with cam-type cut-out clutch |
| Version | Implement: tapered clamping bolt |
| Locking system | Automatic lock/clamping bolt |
| Additional information | Operating instructions included |
| Universal joint size A profile (mm) | 27 x 100 |
| Universal joint size B profile (mm) | 27 x 100 |
| Weight | 47,00 kg |
| Catalogue | PTO shafts & drive technology (p. 237) |
