Ersatzteil

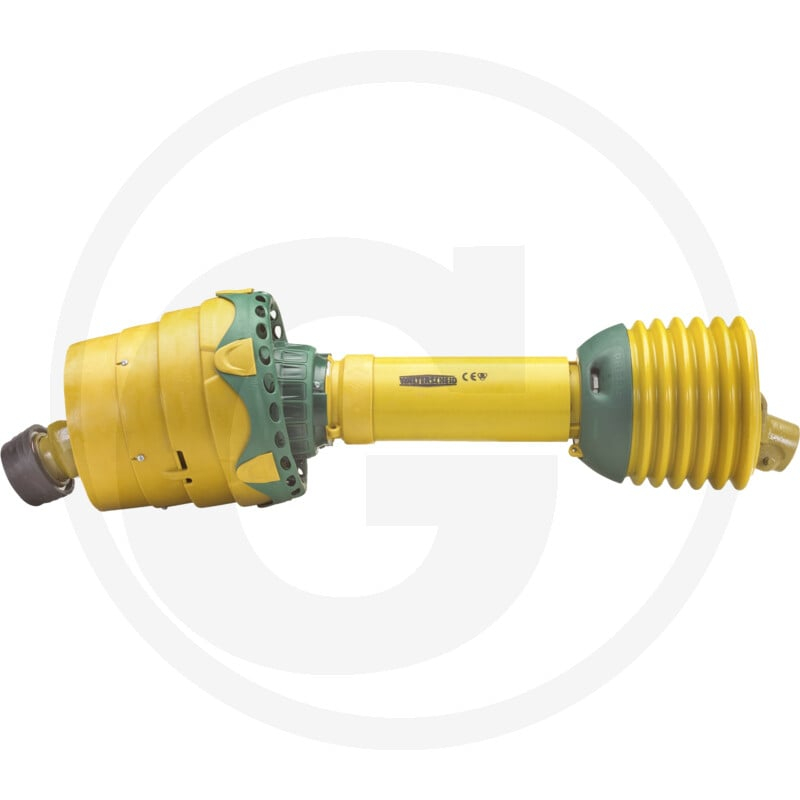

Gelenkwelle Pwe 580 (395113422) Granit
€ 3.012,10inkl. MwSt.
€ 2.861,50 mit Wochenexpress
inkl. MwSt. zzgl. Versandkosten
Art.Nr. 395113422
Produktbeschreibung
Technische Spezifikationen
Universal joint size A profile (mm) | 36 x 89 x 32 x 106 |
Universal joint size B profile (mm) | 36 x 89 |
Size | 580 |
Tractor version | 1 3/4" 6 splines |
Implement version | 1 3/8” 6 splines |
Lz (mm) | 1210 |
Wide angle | One end |
Profile | With star profile |
Locking system | Clamping taper bolt/automatic push-pull lock |
Profile pair | S4GA/S5 |
Guard version | SPGF25Z |
Max. speed (1/min.) | 1000 |
Lock | AGCC/QSG |
Type | PWE |
A (profile) | 1 3/4" 6 splines |
B (profile) | 1 3/8" 6 teeth |
Additional information | Bedienungsanleitung ist im Lieferumfang enthalten |
Weight | 35,00 kg |
