Ersatzteil

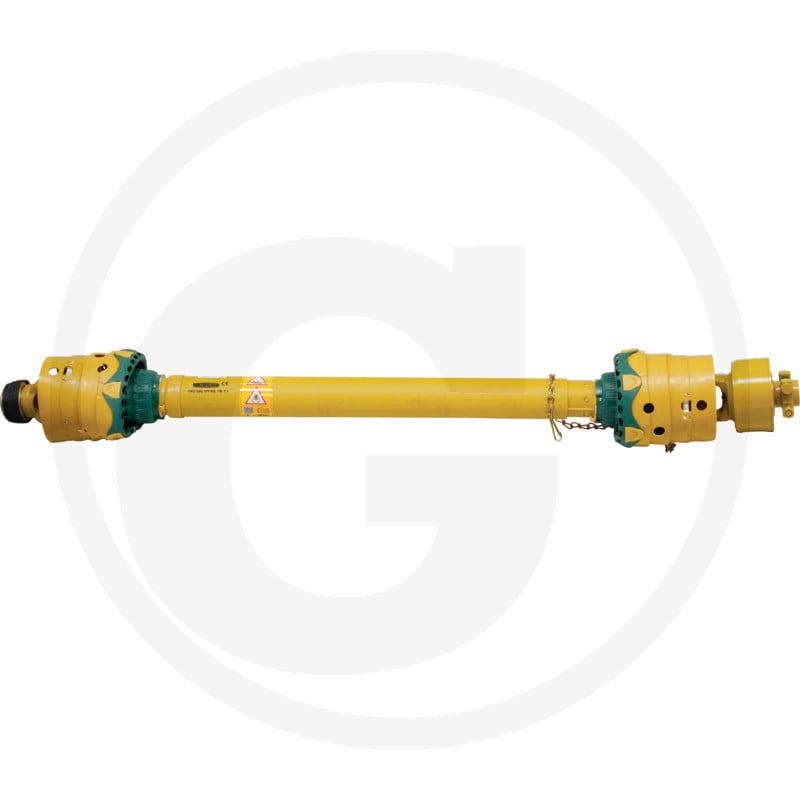

Pwe 580 Spf25Z 1410 K68/22R 20 (395602558) Granit
€ 5.962,23inkl. MwSt.
€ 5.664,12 mit Wochenexpress
inkl. MwSt. zzgl. Versandkosten
Art.Nr. 395602558
Produktbeschreibung
Technische Spezifikationen
| Universal joint size A profile (mm) | 36 x 89 x 32 x 106 |
| Universal joint size B profile (mm) | 36 x 89 x 32 x 106 |
| Size | 580 |
| Tractor version | 1 3/4” 20 splines |
| Implement version | 1 3/4” 6 splines |
| Lz (mm) | 1410 |
| Torque (Nm) | 2000 |
| Connection | Cam clutch |
| Profile | With star profile |
| Profile pair | S4GA/S5 |
| Guard version | SPF25Z |
| Max. speed (1/min.) | 1000 |
| Lock | K-KB/QSG |
| Type | PWZ |
| Version | Implement: cam clutch K68/22R |
| A (profile) | 1 3/4” 20 splines |
| B (profile) | 1 3/4" 6 teeth |
| Locking system | Clamping screw/automatic push-pull lock |
| Areas of application | For loading wagons |
| Wide angle | Both ends |
