Ersatzteil
Pwe 580 Spgf25 860 3684320 361 (395152769) Granit
€ 2.672,07inkl. MwSt.
€ 2.538,47 mit Wochenexpress
inkl. MwSt. zzgl. Versandkosten
Art.Nr. 395152769
Produktbeschreibung
Technische Spezifikationen
| Size | 580 |
| Lz (mm) | 860 |
| A (profile) | 1 3/4” 20 splines |
| B (profile) | 1 3/4" 20 teeth |
| Profile pair | S4GA/S5 |
| Universal joint size A profile (mm) | 36 x 89 x 32 x 106 |
| Universal joint size B profile (mm) | 36 x 89 |
| Lock | AGCC/QSG |
| Implement version | 1 3/4” 20 splines |
| Tractor version | 1 3/4" 20 splines |
| Series | PWE 580 |
| Profile | With star profile |
| Guard version | SPGF 25Z |
| Max. speed (1/min.) | 1000 |
| Type | PWE |
| Version | Implement: quick-disconnect yoke with clamping taper bolt |
| Locking system | Clamping taper bolt/automatic push-pull lock |
| Wide angle | One end |

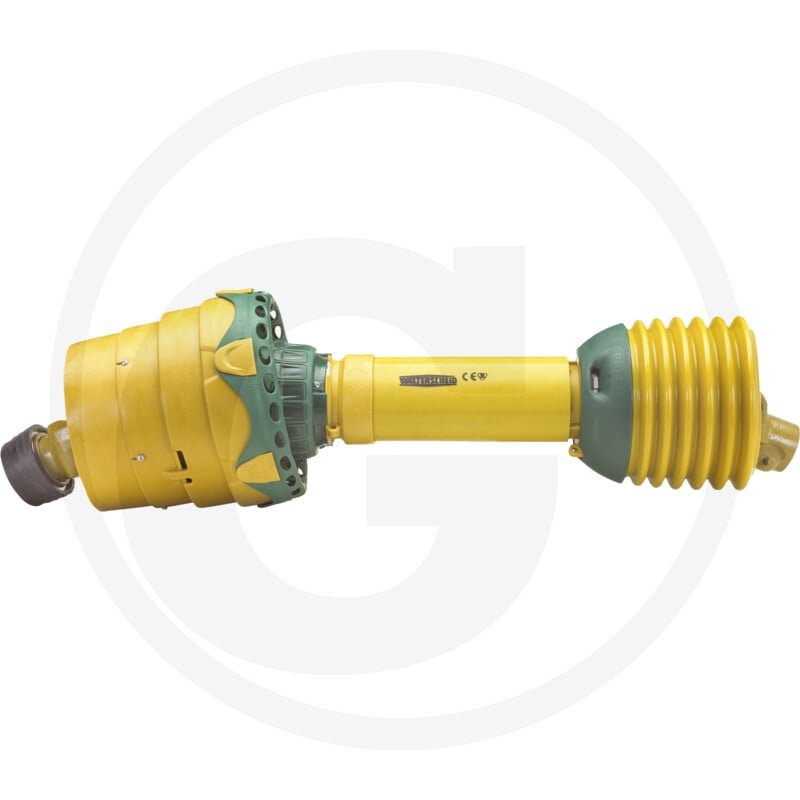

| Description | PWE Power Drive PTO shafts with wide-angle joint at one end |
| Weight | 29,79 kg |
