Ersatzteil

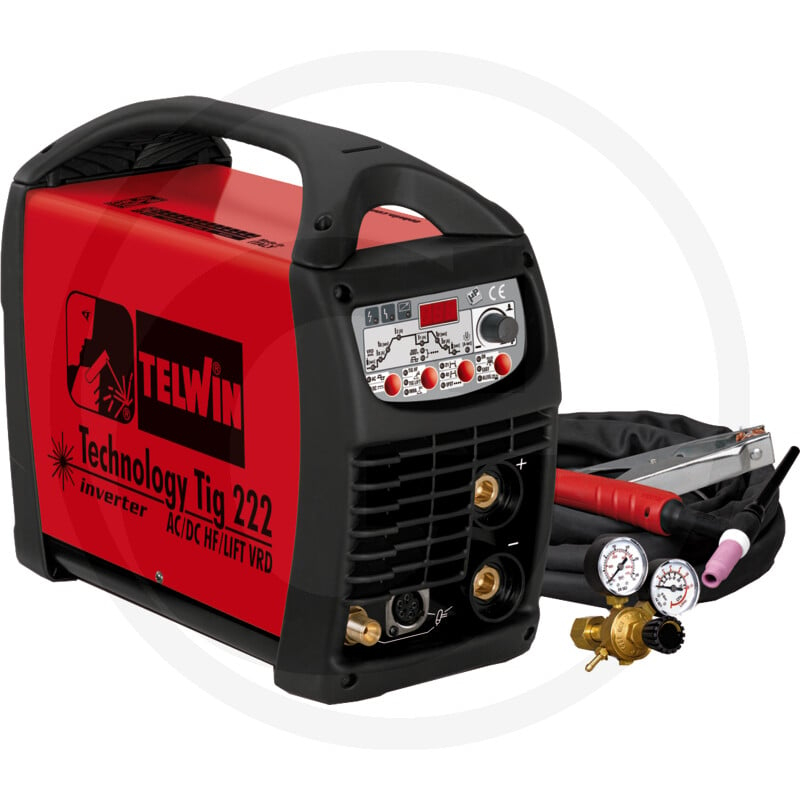

Wig Schweiżgerät Technology Ti (500852031) Granit
€ 3.493,47inkl. MwSt.
€ 3.318,80 mit Wochenexpress
inkl. MwSt. zzgl. Versandkosten
Art.Nr. 500852031
Produktbeschreibung
Technische Spezifikationen
| Technical data | Microprocessor-controlled inverter welder for direct current (DC) and direct and alternating current (AC/DC) welding, according to the TIG, PULSE TIG (high-frequency HF and LIFT ignition) and MMA process. Work with a variety of materials such as steel, stainless steel, aluminium, titanium, copper, nickel, magnesium and their alloys. |
| Voltage (volts/Hz) | 230, 50-60 |
| Mains voltage (V) | 230 - 1ph |
| Control range (A) | 5 - 200 |
| Current (A) | 200 (24%) - 100 (60%) |
| Open circuit voltage (V) | 100 |
| Power consumption max. (kW) | 20 - 34 (60%) |
| Current requirement (A) | 21 |
| Mains fuse (A) | 20 |
| Power factor (cos phi) | 0,77 |
| Electrodes (mm) | 1,6 - 4 |
| Protection class | IP23 |
| Dimensions (mm) | 430 x 170 x 340 |
| Reference no. | 852054 |
| Weight | 17,69 kg |
| EAN codes | 8004897943930 |
