Ersatzteil

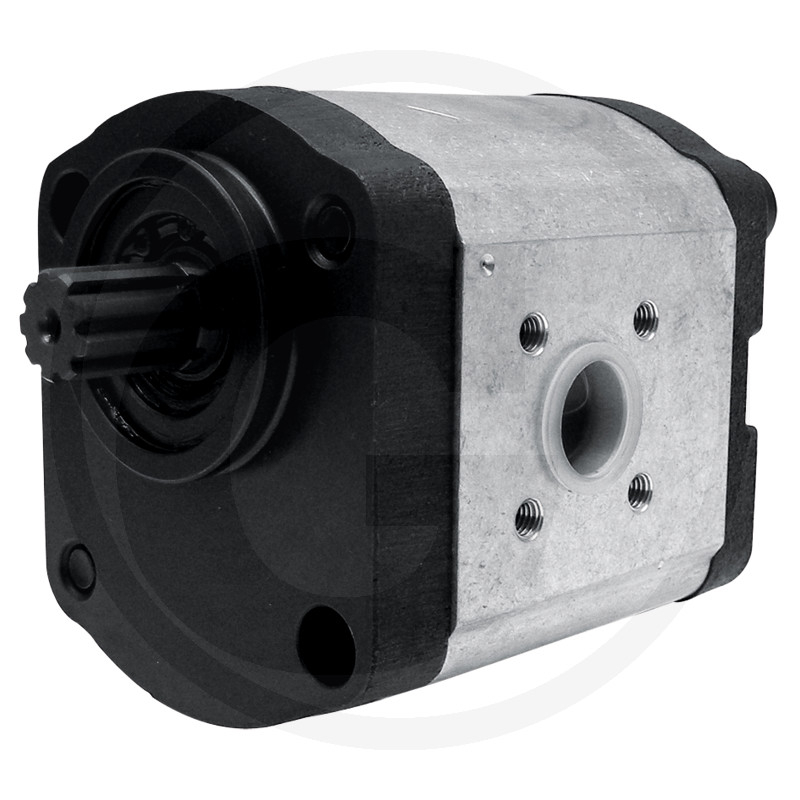

Zahnradpumpe (256R918C01392) Granit
€ 480,80inkl. MwSt.
€ 456,76 mit Wochenexpress
inkl. MwSt. zzgl. Versandkosten
Art.Nr. 256R918C01392
Produktbeschreibung
Technische Spezifikationen
| Output volume (cc/rev) | 16 |
| Drive shaft | Splined shaft B 17 x 14 9 splines |
| Types | Formula 115, 135, Nitro R T4i-100, 110, 120, Premium-850, 1050, 1060, 950, 1100, 1300, R2.66, R2.67, R2.86, R2.60, R2.70, R2.80, R2.90, R2.100 HI-Profile, R3.75, R3.85, R3.95, R3.Evo85, R3.105, R4.85, R4.95, R4.104, R4.105, R4.105, R4.110, R4.100 VRT, R4.110 VRT, R5.115, R5.130, R6.130, R6.130 S, R6.140 S, R6.150, R6.150 S, R6.150.7, R6.165 S, R6.165.7, R6.130 DCR, R6.140 DCR, R6.140 DCR 4V, R6.160 DCR, R6.160 DCR 4V, R6.175 DCR, R6.185 DCR, RS.70, RS.75, RS.90, RS.100, RS.80, RS.90, RS.100, RS.110, RV.74, RV.75, RV.100, RV.80, RV.90.3, RV.100, RV.110 |
| Operating pressure max. (bar) | 250 |
| Direction of rotation | Left |
| Min. speed (1/min.) | 500 |
| Max. speed (1/min.) | 3000 |
| Line connection suction side | Ø 40 mm, 4 holes, M6 |
| Line connection pressure side | Ø 35mm, 4 holes, M6 |
| Capacity Q (cc/rev) | 16 |
| Adaptor plate hole pattern (mm) | 60 x 60 (2 x) |
| Fitting Ø (mm) | 50 |
| Seal material | NBR |
| Weight | 3,09 kg |
| Fig. no. | 8 |
